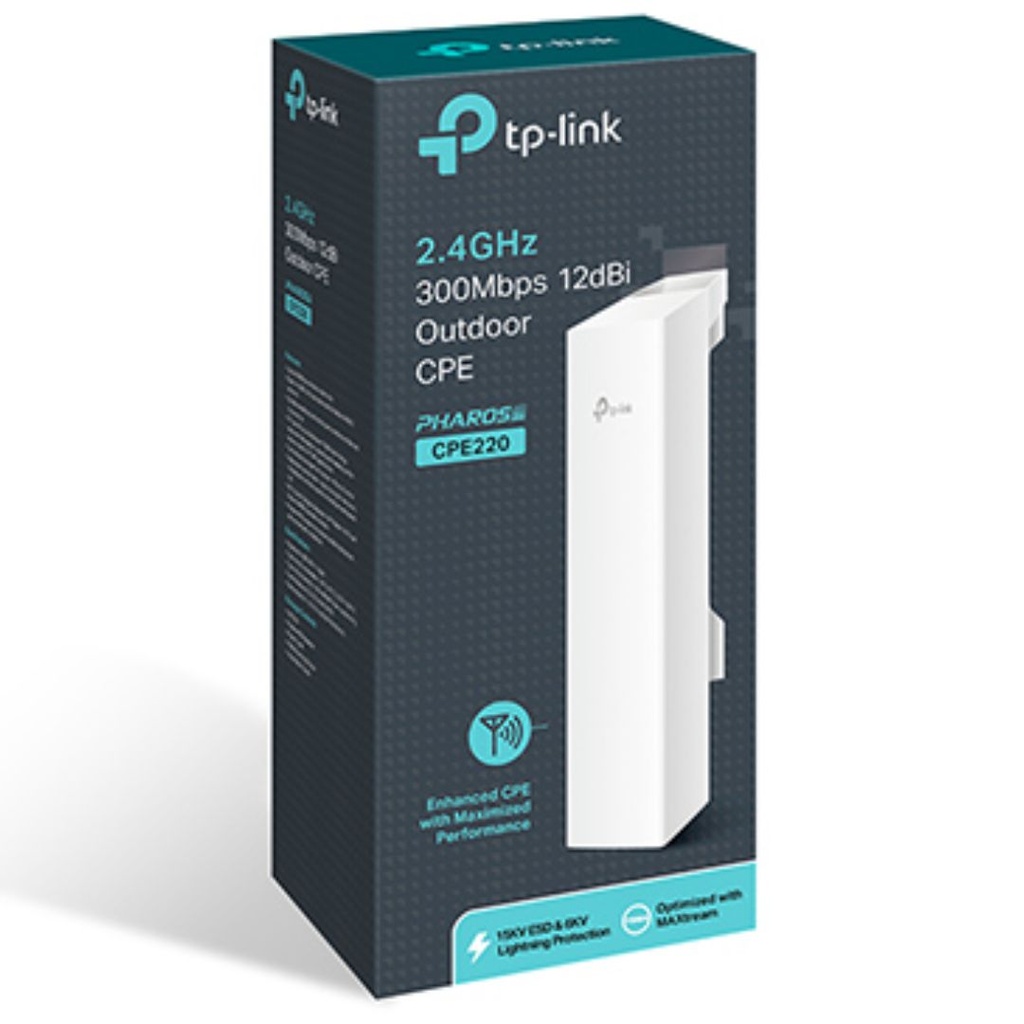

TP-Link CPE220, 2.4 GHz, 300 Mbit/s, 64-bit WEP, 128-bit WEP, 152-bit WEP, AES, HTTPS, SNMP, SSH, SSID, TKIP, WPA, WPA-PSK, WPA2,...
TP-Link CPE220. 2.4 GHz, Maximum data transfer rate: 300 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, AES, HTTPS, SNMP, SSH, SSID, TKIP, WPA, WPA-PSK, WPA2,.... Power over Ethernet (PoE). Product colour: White. Power consumption (max): 10.8 W
| Features | |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | No |
| Maximum data transfer rate | 300 |
| Wi-Fi data rate (max) | 300 |
| Frequency band | 2.4 - 2.483 |
| Bandwidth | 2.4 |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Channels quantity | 5 |
| Channel bandwidth | 40 |
| Automatic channel selection | Yes |
| VLAN support | Yes |
| RTS/CTS threshold | Yes |
| Security | |
| Security algorithms | 64-bit WEP, 128-bit WEP, 152-bit WEP, AES, HTTPS, SNMP, SSH, SSID, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| Service Set Identifier (SSID) features | SSID broadcast on/off |
| Number of SSID supported | 1 |
| IGMP snooping | Yes |
| Auto Wireless Distribution System (WDS) | Yes |
| Protocols | |
| Universal Plug and Play (UPnP) | Yes |
| DHCP client | Yes |
| Management protocols | TDMA |
| Management features | |
| Web-based management | Yes |
| Management platform | Pharos Control |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Internal RJ-45 ports quantity | 1 |
| DC-in jack | Yes |
| Power | |
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 100 - 240 |
| AC input frequency | 50 - 60 |
| Input current | 0.8 |
| Output voltage | 24 |
| Output current | 1 |
| Power consumption (max) | 10.8 |
| Design | |
| Product colour | White |
| International Protection (IP) code | IPX5 |
| Reset button | Yes |
| LED indicators | Power |
| Internal | No |
| Antenna | |
| Antenna type | Internal |
| Antenna features | Integrated antenna |
| Antennas quantity | 2 |
| Antenna gain level (max) | 12 |
| Performance | |
| Built-in processor | Yes |
| Flash memory | 8 |
| Internal memory | 64 |
| Certificates | |
| Certification | - CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark - RoHS, IPX5 |
| Weight & dimensions | |
| Width | 110 |
| Depth | 57 |
| Height | 33.5 |
| Packaging content | |
| AC adapter included | Yes |
| Mounting kit | Yes |
| Quick start guide | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90 |
| Operating temperature (T-T) | -30 - 70 |
| Storage temperature (T-T) | -40 - 70 |
| Storage relative humidity (H-H) | 5 - 95 |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
