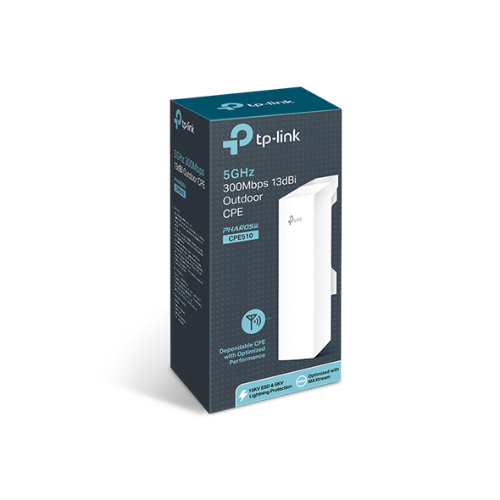

TP-Link CPE510, 300 Mbit/s, 64-bit WEP, 128-bit WEP, 152-bit WEP, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK, 10,100 Mbit/s
TP-Link CPE510. Maximum data transfer rate: 300 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK. Ethernet LAN data rates: 10,100 Mbit/s. Power over Ethernet (PoE). Product colour: White
| Features | |
|---|---|
| Maximum data transfer rate | 300 |
| Wi-Fi data rate (max) | 300 |
| Ethernet LAN data rates | 10,100 |
| Frequency band | 5.15 - 5.85 |
| Bandwidth | 5 |
| Networking standards | IEEE 802.11a, IEEE 802.11n |
| Maximum outdoor range | 15000 |
| Receiver sensitivity | 802.11a: 54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm 802.11n: MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm, MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm, MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm, MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm, MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm |
| Security | |
| Security algorithms | 64-bit WEP, 128-bit WEP, 152-bit WEP, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| MAC address filtering | Yes |
| Protocols | |
| Management protocols | TDMA |
| Management features | |
| Web-based management | Yes |
| Management platform | Pharos Control |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| WAN connection | Ethernet (RJ-45) |
| Power | |
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 100 - 240 |
| AC input frequency | 50 - 60 |
| Input current | 0.8 |
| Power consumption (typical) | 13 |
| Design | |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
| Internal | No |
| Antenna | |
| Antenna features | Integrated antenna |
| Antennas quantity | 1 |
| Antenna gain level (max) | 13 |
| Performance | |
| Built-in processor | Yes |
| Flash memory | 8 |
| Internal memory | 64 |
| Compatible operating systems | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. |
| Certificates | |
| Certification | FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark RoHS |
| Weight & dimensions | |
| Width | 224 |
| Depth | 75 |
| Height | 60 |
| Packaging content | |
| Cables included | AC |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90 |
| Operating temperature (T-T) | -30 - 70 |
| Storage temperature (T-T) | -40 - 70 |
| Storage relative humidity (H-H) | 5 - 95 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
