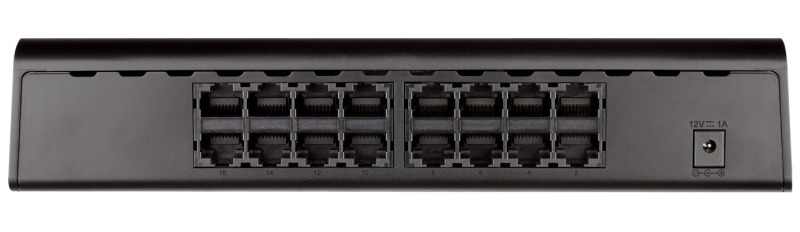

D-Link DGS-1016A, Unmanaged, Full duplex
D-Link DGS-1016A. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Data transmission | |
| Supported data transfer rates | 10, 100,1000Mbps |
| Switching capacity | 32 |
| MAC address table | 8000 |
| Store-and-forward | Yes |
| Maximum data transfer rate | 2 |
| Jumbo frames support | Yes |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| LED indicators | Yes |
| Performance | |
| Mean time between failures (MTBF) | 527308 |
| Power | |
| Input current | 1 |
| Power consumption (typical) | 7.89 |
| Other features | |
| Packet transfer speed | 1488000 pps/port |
| Power LED | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -10 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Weight & dimensions | |
| Width | 231 |
| Depth | 158 |
| Height | 46 |
| Weight | 580 |
| Packaging data | |
| Package width | 231 |
| Package depth | 158 |
| Package height | 46 |
| Certificates | |
| Certification | RoHS FCC ICES-003 CE uCL CB VCCI C-Tick |
Specifications
| Brand | D-Link |
