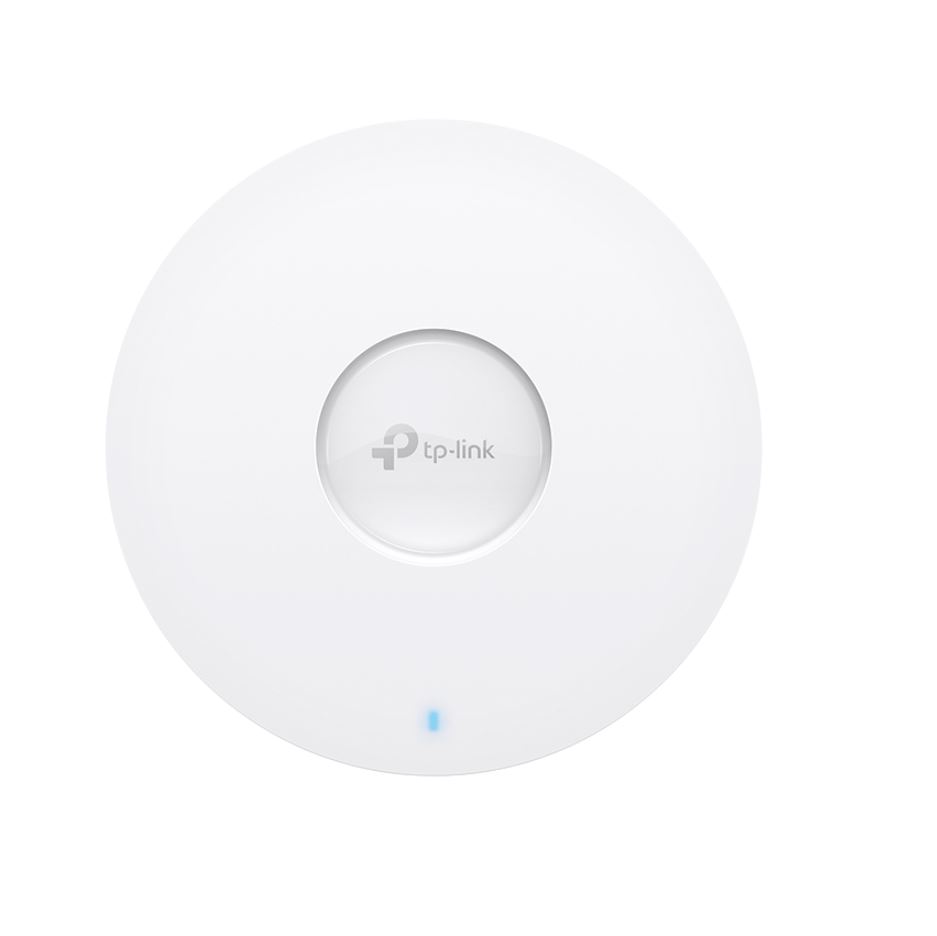

TP-Link Omada AX1800 Ceiling Mount WiFi 6 Access Point, 2.4 GHz, 5 GHz, 1775 Mbit/s, HTTPS, SNMP, SNMPv2, SNMPv3, WPA, WPA2, WPA3, 100,1000 Mbit/s
TP-Link Omada AX1800 Ceiling Mount WiFi 6 Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1775 Mbit/s. Security algorithms: HTTPS, SNMP, SNMPv2, SNMPv3, WPA, WPA2, WPA3. Ethernet LAN data rates: 100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 10.6 W
| Features | |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1775 |
| Maximum data transfer rate (2.4 GHz) | 574 |
| Maximum data transfer rate (5 GHz) | 1201 |
| Ethernet LAN data rates | 100,1000 |
| Frequency band | 2.4 - 5 |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Automatic channel selection | Yes |
| Automatic channel scanning | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Spread spectrum method | OFDMA |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Wireless isolation | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| BeamForming | Yes |
| Transmitting power (CE) | <20 dBm(2.4 GHz, EIRP); <23 dBm(5 GHz band1/2, EIRP); <25 dBm (5 GHz band3) |
| Transmitting power (FCC) | <25 dBm (2.4 GHz); <25 dBm (5 GHz) |
| Security | |
| Security algorithms | HTTPS, SNMP, SNMPv2, SNMPv3, WPA, WPA2, WPA3 |
| Number of SSID supported | 16 |
| Management features | |
| Web-based management | Yes |
| Management platform | Omada |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
| DC voltage range | 12 |
| Input current | 1 |
| Power consumption (typical) | 9.6 |
| Power consumption (max) | 10.6 |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 4 |
| Antenna gain level (max) | 5 |
| Performance | |
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Weight & dimensions | |
| Width | 160 |
| Depth | 160 |
| Height | 33.6 |
| Packaging content | |
| Quantity per pack | 1 |
| Mounting kit | Yes |
| Quick start guide | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 40 |
| Operating temperature (T-T) | 10 - 90 |
| Storage temperature (T-T) | -40 - 70 |
| Storage relative humidity (H-H) | 5 - 90 |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
