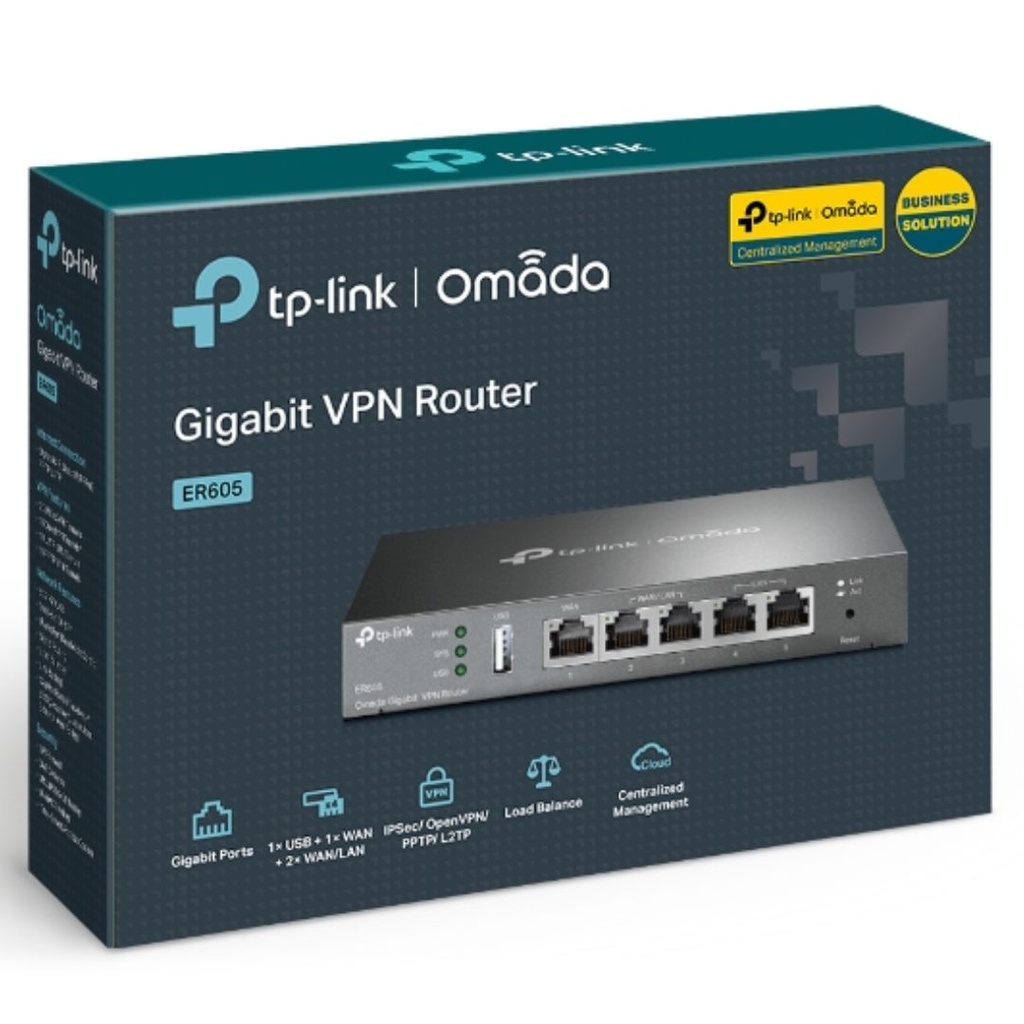

TP-Link Omada Gigabit VPN Router, Ethernet WAN, Gigabit Ethernet, Black
TP-Link Omada Gigabit VPN Router. Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X). Routing protocols: RIP-1, RIP-2, Management protocols: Telnet, Supported network protocols: TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP. Security algorithms: 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, Authentication method: SHA-1, MD5, VPN support: • 20 IPsec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode •.... Compliance certificates: RoHS. Cables included: AC
| WAN connection | |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Ethernet interface type | Gigabit Ethernet |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 |
| VLAN support | Yes |
| Traffic control | Yes |
| Policy-based routing | Yes |
| Concurrent connections | 150000 |
| Management features | |
| Web-based management | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Reset button | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 5 |
| USB ports quantity | 1 |
| Protocols | |
| DMZ support | Yes |
| Routing protocols | RIP-1, RIP-2 |
| Management protocols | Telnet |
| DHCP client | Yes |
| DHCP server | Yes |
| Supported network protocols | TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP |
| Supported protocols | IPsec/PPTP/L2TP |
| Security | |
| Security algorithms | 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1 |
| Firewall | Yes |
| Authentication method | SHA-1, MD5 |
| URL filtering | Yes |
| DoS attack prevention | Yes |
| ARP attack prevention | Yes |
| Network address translation (NAT) | Yes |
| System event log | Yes |
| VPN tunnels quantity | 20 |
| VPN support | • 20 IPsec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IKEv1/v2 • MD5, SHA1 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) • PPTP VPN Server • 10 PPTP VPN Clients • 16 Tunnels • PPTP with MPPE Encryption • L2TP VPN Server • 10 L2TP VPN Clients • 16 Tunnels • L2TP over IPSec • OpenVPN Server • 10 OpenVPN Clients • 16 OpenVPN Tunnels |
| NAT functionality | • One-to-One NAT • Multi-Net NAT • Virtual Server • Port Triggering • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG, UPnP |
| Certificates | |
| Compliance certificates | RoHS |
| Packaging content | |
| Cables included | AC |
| Manual | Yes |
| Quick start guide | Yes |
| Quick installation guide | Yes |
| Features | |
| Flash memory | 128 |
| Internal memory | 256 |
| Internal memory type | DRAM |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
| Mac operating systems supported | MacOS |
| Linux operating systems supported | Yes |
| Certification | CE, FCC, RoHS |
| Design | |
| Product colour | Black |
| Rack mounting | Yes |
| Rack capacity | 1U |
| LED indicators | Activity, LAN, System, USB, WAN |
| Power | |
| Power consumption (typical) | 7.94 |
| Power source type | AC |
| AC input voltage | 120 - 240 |
| AC input frequency | 50 - 60 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Weight & dimensions | |
| Width | 158 |
| Depth | 101 |
| Height | 25 |
| Packaging data | |
| Package width | 190 |
| Package depth | 254 |
| Package height | 60 |
| Package weight | 650 |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
