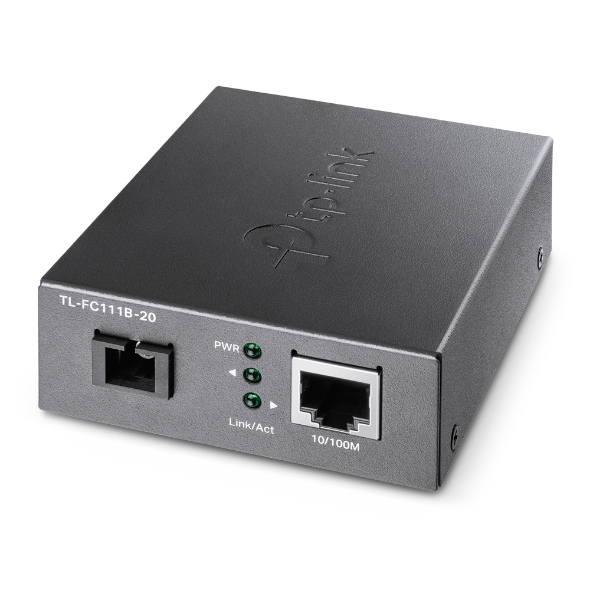

TP-Link 10/100 Mbps RJ45 to 100 Mbps Single-mode SC WDM Bi-Directional Fiber Converter, 100 Mbit/s, IEEE 802.3, IEEE 802.3i, IEEE 802.3x, 10BASE-T, 100BASE-T, 100BASE-FX, 100 Mbit/s, Full, Half
TP-Link 10/100 Mbps RJ45 to 100 Mbps Single-mode SC WDM Bi-Directional Fiber Converter. Maximum data transfer rate: 100 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3i, IEEE 802.3x, Copper ethernet cabling technology: 10BASE-T, 100BASE-T. Maximum transfer distance: 20000 m, Fiber mode structure: Single-mode, Fiber cable diameters supported (core/cladding): 9/125 µm. LED indicators: Activity, Link, Power, Product colour: Black. Fiber optic connector: SC, Connectivity technology: Wired. Output voltage: 5 V, Output current: 0.6 A
| Network | |
|---|---|
| Maximum data transfer rate | 100 |
| Networking standards | IEEE 802.3, IEEE 802.3i, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T |
| Fiber ethernet cabling technology | 100BASE-FX |
| Data transfer rate | 100 |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Duplex system | Full, Half |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Performance | |
| Maximum transfer distance | 20000 |
| Fiber mode structure | Single-mode |
| Fiber cable diameters supported (core/cladding) | 9/125 |
| Features | |
| Internal | No |
| LED indicators | Activity, Link, Power |
| Product colour | Black |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Power | |
| Output voltage | 5 |
| Output current | 0.6 |
| External power adapter | Yes |
| Weight & dimensions | |
| Width | 94.5 |
| Depth | 73 |
| Height | 27 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Packaging data | |
| Package width | 165 |
| Package depth | 204 |
| Package height | 65 |
| Package weight | 360 |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | FCC, CE |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
