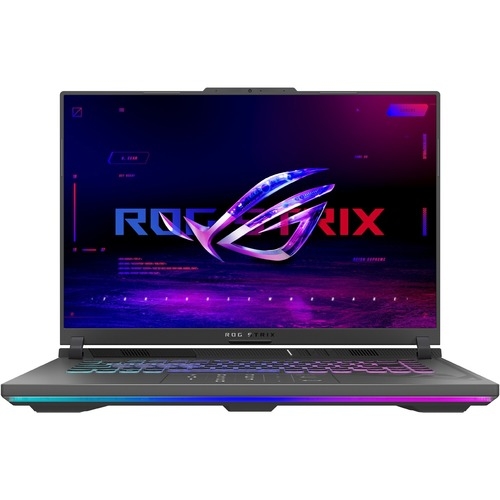

ASUS ROG Strix G16 G614JV-N4156W, Intel® Core™ i7, 40.6 cm (16"), 2560 x 1600 pixels, 16 GB, 512 GB, Windows 11 Home
ASUS ROG Strix G16 G614JV-N4156W. Product type: Laptop, Form factor: Clamshell. Processor family: Intel® Core™ i7, Processor model: i7-13650HX. Display diagonal: 40.6 cm (16"), HD type: WQXGA, Display resolution: 2560 x 1600 pixels. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® UHD Graphics, Discrete graphics card model: NVIDIA GeForce RTX 4060. Operating system installed: Windows 11 Home. Product colour: Grey
| Design | |
|---|---|
| Colour name | Eclipse Grey |
| Product type | Laptop |
| Product colour | Grey |
| Form factor | Clamshell |
| Market positioning | Gaming |
| Introduction year | 2023 |
| Display | |
| Display diagonal | 40.6 |
| Display resolution | 2560 x 1600 |
| Touchscreen | No |
| HD type | WQXGA |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Anti-glare screen | Yes |
| RGB colour space | DCI-P3 |
| Colour gamut | 100 |
| Display response rise/fall | 3 |
| Maximum refresh rate | 240 |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | Dolby Vision |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 13th gen Intel® Core™ i7 |
| Processor model | i7-13650HX |
| Processor cores | 14 |
| Processor boost frequency | 4.9 |
| Efficient-core boost frequency | 3.6 |
| Processor cache | 24 |
| Processor cache type | Smart Cache |
| Bus type | DMI4 |
| Configurable TDP-down | 45 |
| Processor base power | 55 |
| Maximum turbo power | 157 |
| Memory | |
| Internal memory | 16 |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 4800 |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 1 x 16 |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 32 |
| Memory channels | Dual-channel |
| Storage | |
| Total storage capacity | 512 |
| Storage media | SSD |
| Total SSDs capacity | 512 |
| Number of SSDs installed | 1 |
| SSD capacity | 512 |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Optical drive type | No |
| Card reader integrated | No |
| Graphics | |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA GeForce RTX 4060 |
| Discrete graphics card memory | 8 |
| Discrete graphics memory type | GDDR6 |
| On-board graphics card | Yes |
| On-board GPU manufacturer | Intel |
| Discrete graphics card | Yes |
| On-board graphics card model | Intel® UHD Graphics |
| NVIDIA G-SYNC | Yes |
| Audio | |
| Audio system | Dolby Atmos |
| Number of built-in speakers | 2 |
| Built-in microphone | Yes |
| Camera | |
| Front camera | Yes |
| Front camera resolution | 1280 x 720 |
| Front camera HD type | HD |
| Network | |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |
| Antenna type | 2x2 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Thunderbolt 4 ports quantity | 1 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| Power adapter barrel connector | 6.0 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Keyboard | |
| Pointing device | Touchpad |
| Numeric keypad | No |
| Keyboard backlit | Yes |
| Keyboard backlit colour | RGB |
| Keyboard backlit zone | Per-key RGB |
| Software | |
| Operating system architecture | 64-bit |
| Trial software | 1-month trial for new Microsoft 365 customers |
| Operating system installed | Windows 11 Home |
| Processor special features | |
| Intel Flex Memory Access | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| Battery capacity | 90 |
| Power | |
| AC adapter power | 280 |
| AC adapter frequency | 50 - 60 |
| AC adapter input voltage | 100 - 240 |
| AC adapter output current | 14 |
| AC adapter output voltage | 20 |
| DC-in jack | Yes |
| USB Power Delivery (USB PD) | Yes |
| Security | |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | BIOS, User |
| Weight & dimensions | |
| Width | 354 |
| Depth | 264 |
| Height (front) | 2.26 |
| Height (rear) | 3.04 |
| Weight | 2.5 |
Specifications
| Brand | Asus |
