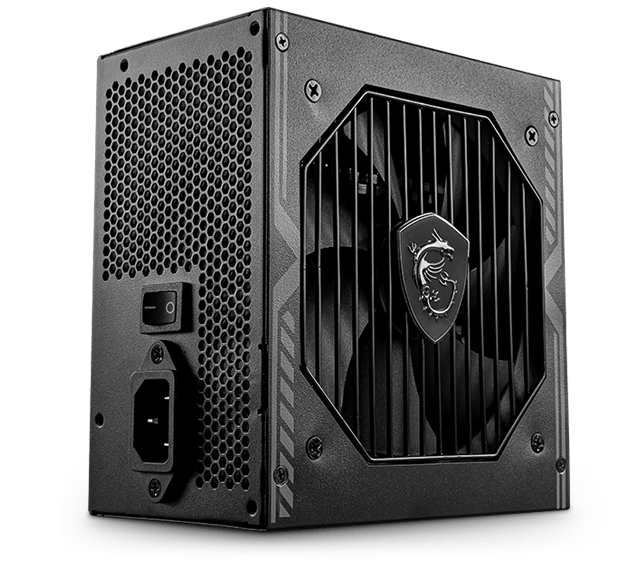

MSI MAG A650BN UK PSU '650W, 80 Plus Bronze certified, 12V Single-Rail, DC-to-DC Circuit, 120mm Fan, Non-Modular, Sleeved Cables, ATX Power Supply Unit, UK Powercord, Black', 650 W, 100 - 240 V, 50 - 60 Hz, 10 A, 5 A, Active
MSI MAG A650BN UK PSU '650W, 80 Plus Bronze certified, 12V Single-Rail, DC-to-DC Circuit, 120mm Fan, Non-Modular, Sleeved Cables, ATX Power Supply Unit, UK Powercord, Black'. Total power: 650 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
| Power | |
|---|---|
| Total power | 650 |
| AC input voltage | 100 - 240 |
| AC input frequency | 50 - 60 |
| Maximum input current (@110V) | 10 |
| Maximum input current (@220V) | 5 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 |
| Combined power (+12V) | 648 |
| Combined power (+5V) | 110 |
| Combined power (-12V) | 3.6 |
| Combined power (+5Vsb) | 12.5 |
| Max output current (+3.3V) | 20 |
| Max output current (+12V) | 54 |
| Max output current (+5V) | 20 |
| Max output current (-12V) | 0.3 |
| Max output current (+5Vsb) | 20 |
| Efficiency | 85 |
| Power protection features | Over current, Over power, Over voltage, Short circuit |
| Ports & interfaces | |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| EPS power connector (8-pin) | No |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| ATX Power connector (24-pin) | No |
| ATX power connector (20+4 pin) | Yes |
| Floppy disk drive connector | No |
| Cabling type | Non-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Design | |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 |
| Number of fans | 1 |
| On/off switch | Yes |
| Weight & dimensions | |
| Width | 150 |
| Depth | 140 |
| Height | 86 |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
Specifications
| Brand | MSI |
