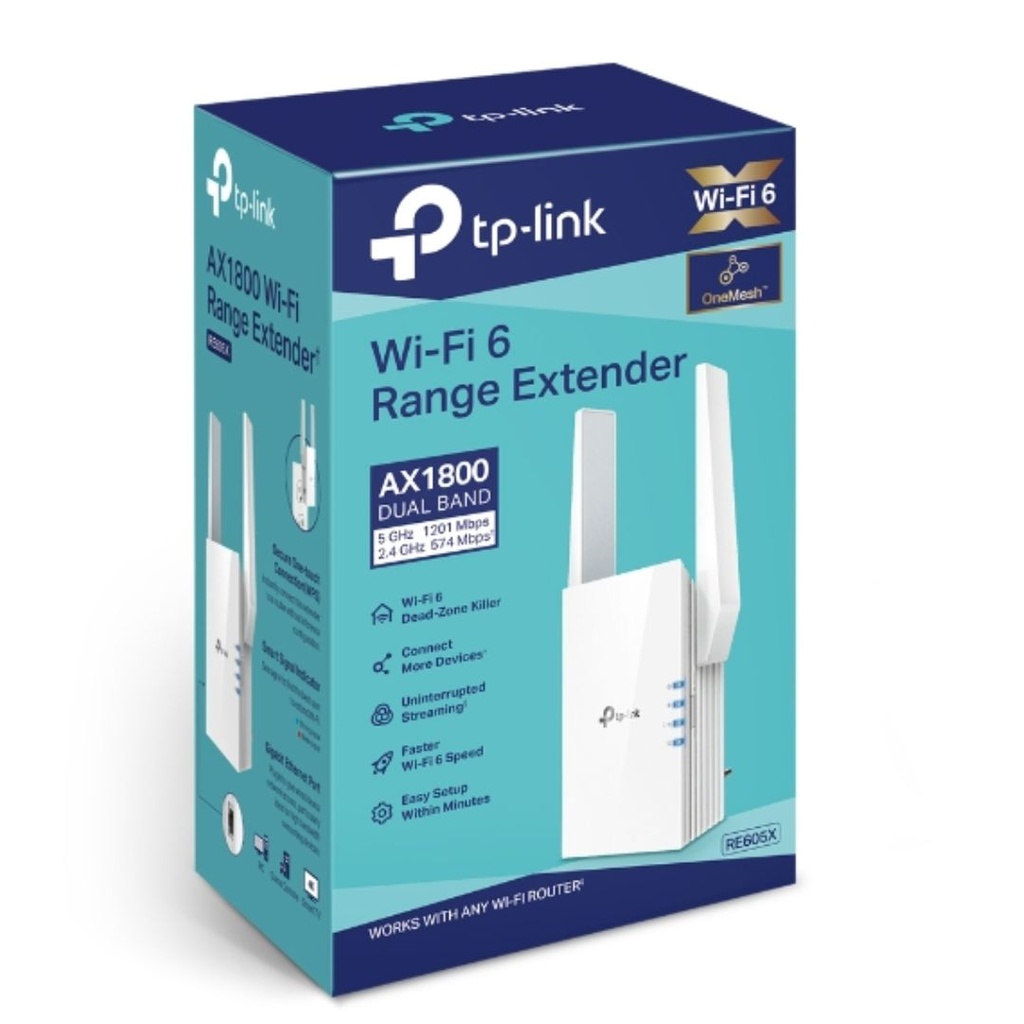

TP-Link AX1800 Wi-Fi Range Extender, Network repeater, 1201 Mbit/s, 10,100,1000 Mbit/s, Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows..., Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, External
TP-Link AX1800 Wi-Fi Range Extender. Type: Network repeater, Data transfer rate: 1201 Mbit/s, Ethernet LAN data rates: 10,100,1000 Mbit/s. Antenna type: External, Transmitting power (CE): 2.4 GHz ≤15dBm, 5 GHz ≤21dBm. Cabling technology: 10/100/1000Base-T(X), Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Product colour: White, Quantity per pack: 1 pc(s), Country of origin: China. AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz, Power consumption (typical): 10 W
| Performance | |
|---|---|
| Type | Network repeater |
| Data transfer rate | 1201 |
| Ethernet LAN data rates | 10,100,1000 |
| WPS push button | Yes |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Browser supported | Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 |
| Antenna | |
| Antennas quantity | 2 |
| Antenna type | External |
| Transmitting power (CE) | 2.4 GHz ≤15dBm, 5 GHz ≤21dBm |
| Network | |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Wi-Fi data rate (max) | 1200 |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Design | |
| Product colour | White |
| LED indicators | Yes |
| Quantity per pack | 1 |
| Country of origin | China |
| Reset button | Yes |
| Power | |
| AC input voltage | 100 - 240 |
| AC input frequency | 50/60 |
| Power consumption (typical) | 10 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Weight & dimensions | |
| Width | 74 |
| Depth | 46 |
| Height | 124.8 |
| Packaging content | |
| Quick start guide | Yes |
| Packaging data | |
| Package type | Box |
| Package width | 202 |
| Package depth | 125 |
| Package height | 97 |
| Package weight | 420 |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Commodity Classification Automated Tracking System (CCATS) | 85183095 |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
