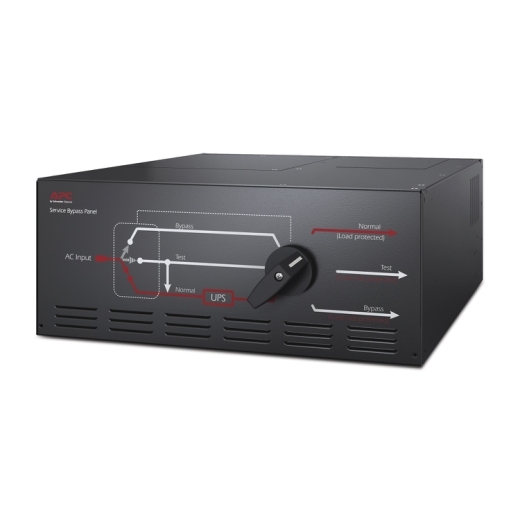

SBP20KP APC Service Bypass Panel 200/208/230/240V MBB 125A HW Input/Output

SBP20KP APC Service Bypass Panel 200/208/230/240V MBB 125A HW Input/Output

(0 review)

Product Code: SBP20KP

APC Service Bypass Panel- 230V; 100A; MBB; Hardwire input; IEC-320 output- (8) C13 (2) C19
Main Input Voltage 200 V, 208 V, 220 V, 230 V, 240 V, 380 V 3 phases, 400 V 3 phases, 415 V 3 phases
Main Output Voltage 200 V, 208 V, 220 V, 230 V, 240 V
Output connector type Hard wire 3-wire (H N + E) 1, Hard wire 3-wire (2P + E) 1
Number of rack unit 4U
Number of cables 1
Provided equipment- Installation guide, Rack mounting brackets, User manual
Network frequency50/60 Hz
Number of input connectors 1 hard wire 3-wire (H N + E), 1 hard wire 3-wire (2P + E), 1 hard wire 5-wire (3P + N + E)
Permissible voltage 200…240 V
Max line current 125 A
Input current limits 125 A
Load capacity 20000 VA
Power factor 0…1
Max current draw 125 A
Protection type Circuit breaker
Efficiency 99 %
Product certifications CSA, GOST
Ambient air temperature for operation -20…50 °C
Relative humidity 0…95 %
Operating altitude 0...15000 ft
Ambient air temperature for storage -40…65 °C
Storage Relative Humidity 0…95 %
Storage altitude 0.00…15240.00 m
Mounting mode- Rack mounted

$ 4,575.00 $ 4,575.00 (Tax excluded)

  • Brand
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

APC Service Bypass Panel 200/208/230/240V 125A HW Input/Output, 20 kVA, 200 V, 240 V, 50/60 Hz, 125 A, Hard Wire 5-wire (3P + N + E)

APC Service Bypass Panel 200/208/230/240V 125A HW Input/Output. Output power capacity: 20 kVA, Input operation voltage (min): 200 V, Input operation voltage (max): 240 V. AC outlet types: Hard Wire 5-wire (3P + N + E). Form factor: Tower, Product colour: Black. Compliance certificates: RoHS, Certification: CSA, EN 60950, GOST, IEC 60950, IEC 60950, UL 1778. Width: 432 mm, Depth: 554 mm, Height: 178 mm

Features
Output power capacity20
Input operation voltage (min)200
Input operation voltage (max)240
Input frequency50/60
Maximum current125
Ports & interfaces
AC outlet typesHard Wire 5-wire (3P + N + E)
Design
Form factorTower
Product colourBlack
Operational conditions
Operating temperature (T-T)-20 - 50
Storage temperature (T-T)-40 - 65
Operating relative humidity (H-H)0 - 95
Storage relative humidity (H-H)0 - 95
Operating altitude0 - 4500
Non-operating altitude0 - 15000
Certificates
Compliance certificatesRoHS
CertificationCSA, EN 60950, GOST, IEC 60950, IEC 60950, UL 1778
Weight & dimensions
Width432
Depth554
Height178
Weight19.3
Packaging data
Package weight31.4
Logistics data
Harmonized System (HS) code85078000
Other features
Operating temperature (T-T)-4 - 122
Overload protectionYes
Package dimensions (WxDxH)610 x 845 x 305

Specifications

Brand APC
