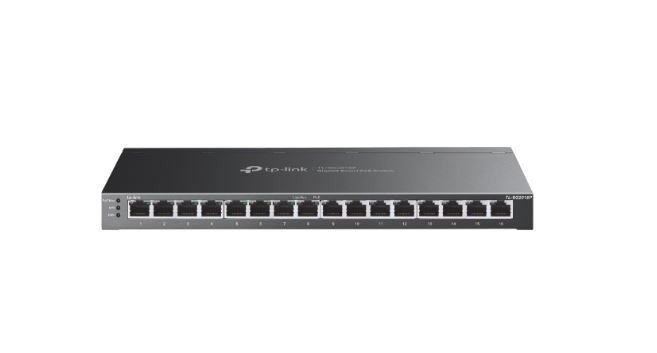

TP-Link Omada 16-Port Gigabit Smart Switch with 8-Port PoE+, Managed, L2/L2+, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting
TP-Link Omada 16-Port Gigabit Smart Switch with 8-Port PoE+. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1x, IEEE 802.3ab, IEEE.... DC input voltage: 53.5 V. Power connector: DC-in jack. Power over Ethernet (PoE). Rack mounting
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L2+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
| MIB support | RFC1213, RFC1493, RFC2674, RFC2620, RFC2618, RFC2925, RFC1757 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Ethernet LAN data rates | 10,100,1000 |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Multicast VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4000 |
| Data transmission | |
| Switching capacity | 32 |
| Forwarding rate | 23.81 |
| MAC address table | 8000 |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 4.1 |
| Security | |
| DHCP features | DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | EAP-MD5, HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| IP-MAC-Port binding | Yes |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication |
| Queue scheduling algorithms | SP, Weighted Round Robin (WRR) |
| MAC address entries | Dynamic MAC address entries, Static MAC address entries |
| Multicast features | |
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | MLD v1, MLD v2 |
| Protocols | |
| Supported network protocols | ICMP, TCPv6, UDPv6, Ping6, Tracert6, Telnet (v6), TFTP, TCP/UDP, DSCP/IP, SSLv3, TLS 1.2 |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6 |
| Design | |
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | PoE, Power, System |
| Performance | |
| Firmware upgradeable | Yes |
| Fanless | Yes |
| Power | |
| Power source | DC/PoE |
| DC input voltage | 53.5 |
| Power consumption (max) | 146.5 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 120 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Heat dissipation | 499.98 |
| Weight & dimensions | |
| Width | 286 |
| Depth | 111.7 |
| Height | 25.4 |
| Packaging content | |
| Cables included | AC |
| Manual | Yes |
| Certificates | |
| Certification | CE, FCC, RoHS |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
