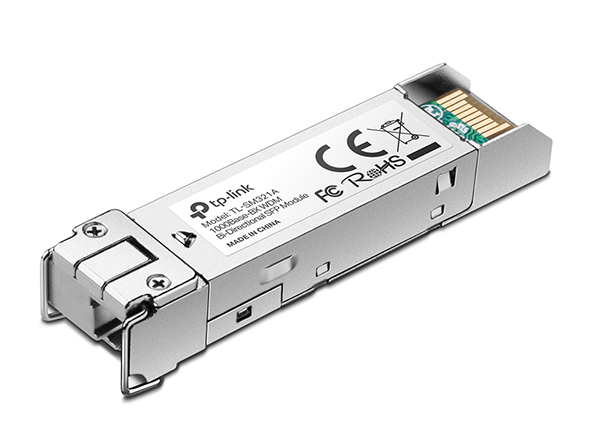

TP-Link Gigabit Single-Mode WDM Bi-Directional SFP Module, Fiber optic, 1250 Mbit/s, SFP, LC (UPC), 9/125 µm, BX
TP-Link Gigabit Single-Mode WDM Bi-Directional SFP Module. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Product colour: Metallic. Input voltage: 3.3 V. Compliance certificates: RoHS, Certification: CE, FCC. Quantity per pack: 1 pc(s)
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | LC (UPC) |
| Fiber cable diameters supported (core/cladding) | 9/125 |
| SFP transceiver standard | BX |
| Maximum transfer distance | 1000 |
| Tx wavelength (max) | 1550 |
| Rx wavelength (max) | 1310 |
| Networking standards | IEEE 802.3z |
| Fiber ethernet cabling technology | 1000BASE |
| Wavelength-division multiplexing (WDM) | Yes |
| Features | |
| Product colour | Metallic |
| Hot-swap | Yes |
| Power | |
| Input voltage | 3.3 |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, FCC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 |
| Storage temperature (T-T) | -40 - 80 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Packaging content | |
| Quantity per pack | 1 |
| Packaging data | |
| Package width | 81.5 |
| Package depth | 122.5 |
| Package height | 38.5 |
| Package weight | 60 |
| Logistics data | |
| Harmonized System (HS) code | 85369010 |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
