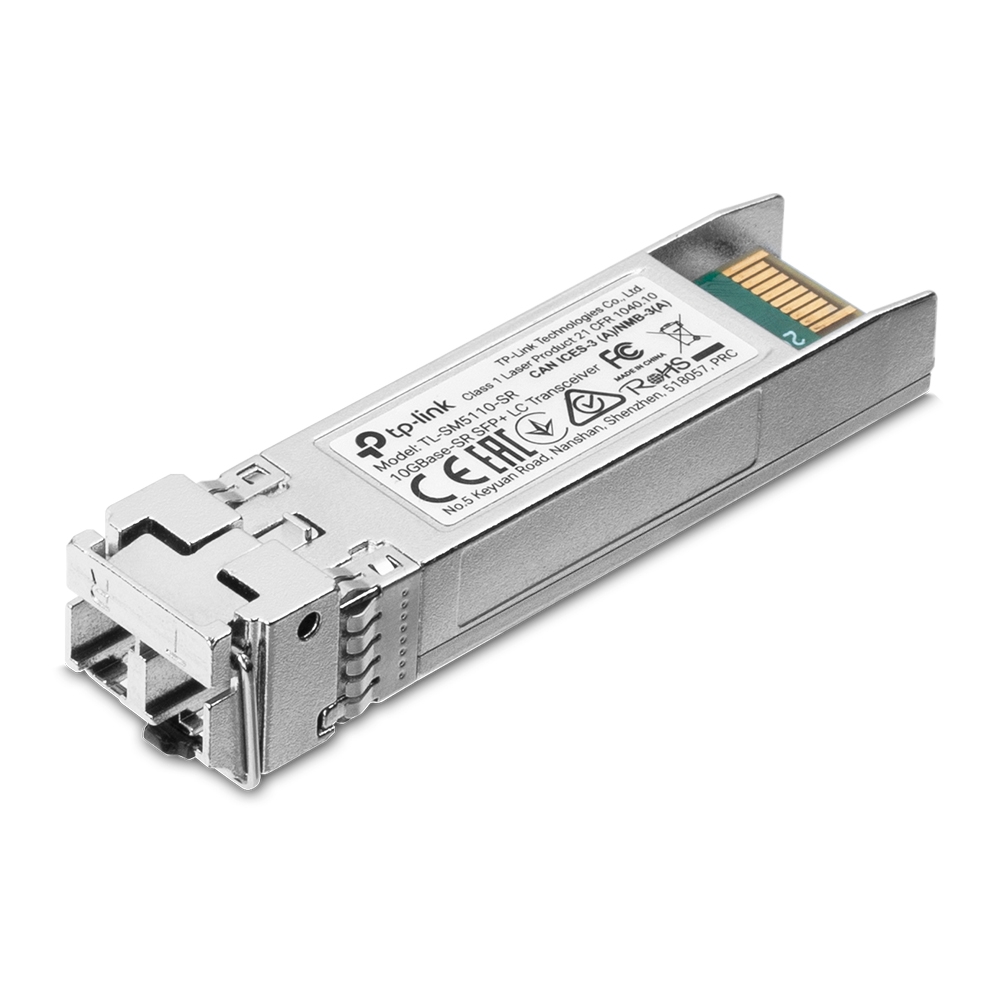

TP-Link Omada 10Gbase-SR SFP+ LC Transceiver SPEC: 850nm Multi-mode, LC Duplex Connector, Up to 300m Distance, Fiber optic, 10000 Mbit/s, SFP+, LC (UPC), 50/125,62.5/125 µm, 300 m
TP-Link Omada 10Gbase-SR SFP+ LC Transceiver SPEC: 850nm Multi-mode, LC Duplex Connector, Up to 300m Distance. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Product colour: Silver. Input voltage: 3.3 V. Certification: FCC, CE. Width: 61.3 mm, Depth: 14.5 mm, Height: 12.2 mm
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 |
| Interface type | SFP+ |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC (UPC) |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 |
| Maximum transfer distance | 300 |
| Wavelength | 850 |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Features | |
| Product colour | Silver |
| Hot-swap | Yes |
| Power | |
| Input voltage | 3.3 |
| Certificates | |
| Certification | FCC, CE |
| Operational conditions | |
| Minimum operating temperature | 0 |
| Maximum operating temperature | 70 |
| Operating temperature (T-T) | 0 - 70 |
| Storage temperature (T-T) | -40 - 80 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Weight & dimensions | |
| Width | 61.3 |
| Depth | 14.5 |
| Height | 12.2 |
| Packaging content | |
| Quantity per pack | 1 |
| Packaging data | |
| Package width | 220 |
| Package depth | 270 |
| Package height | 275 |
| Package weight | 60 |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
