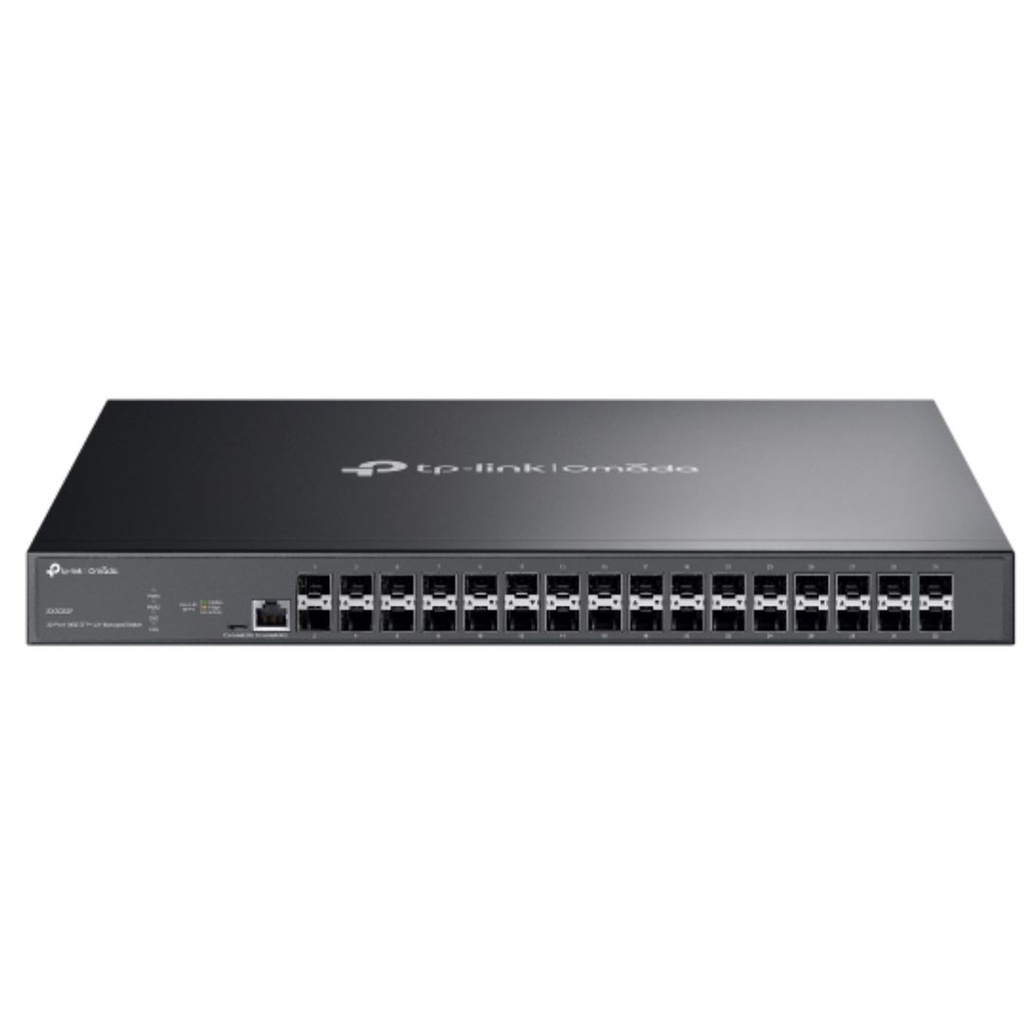

TP-Link Omada 32-Port 10GE SFP+ L2+ Managed Switch, Managed, L2+, Rack mounting
TP-Link Omada 32-Port 10GE SFP+ L2+ Managed Switch. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports quantity: 1, Installed SFP+ modules quantity: 32, Console port: RJ-45/Micro-USB. MAC address table: 32000 entries, Switching capacity: 640 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3x. Rack mounting
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| MIB support | • MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIB |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 1 |
| Installed SFP+ modules quantity | 32 |
| Console port | RJ-45/Micro-USB |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3x |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| IPv4 routes | 48 |
| IPv6 routes | 48 |
| VLAN support | Yes |
| Virtual LAN features | Protocol-based VLAN, SSID-based VLAN assignment, Tagged VLAN, VLAN mapping, Voice VLAN |
| Number of VLANs | 30 |
| Data transmission | |
| Switching capacity | 640 |
| Forwarding rate | 240 |
| MAC address table | 32000 |
| Number of queues | 8 |
| Static route | Yes |
| Number of static routes | 128 |
| Number of IP interfaces | 128 |
| Jumbo frames support | Yes |
| Jumbo frames | 9 |
| Packet buffer memory | 24 |
| Security | |
| DHCP features | DHCP relay, DHCP server, DHCPv6 snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Static port security | Yes |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| IP-MAC-Port binding | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| Password protection | Yes |
| Authentication type | AAA, TACACS+ |
| Queue scheduling algorithms | Priority queuing (PQ), SP, Weighted Round Robin (WRR) |
| Multicast features | |
| Multicast support | Yes |
| Number of multicast groups filtered | 4000 |
| Multicast Listener Discovery (MLD) snooping | Yes |
| Protocols | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6, ICMPv6, IPv6 TFTP |
| IP Source Guard (IPSG) | Yes |
| Design | |
| Rack mounting | Yes |
| Product colour | Black |
| Redundant fans support | Yes |
| Number of fans | 2 |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 |
| AC input frequency | 50/60 |
| Power consumption (max) | 49.4 |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 |
| Storage temperature (T-T) | 40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Weight & dimensions | |
| Width | 440 |
| Depth | 330 |
| Height | 44 |
| Packaging content | |
| Cables included | Power |
| Quick start guide | Yes |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
