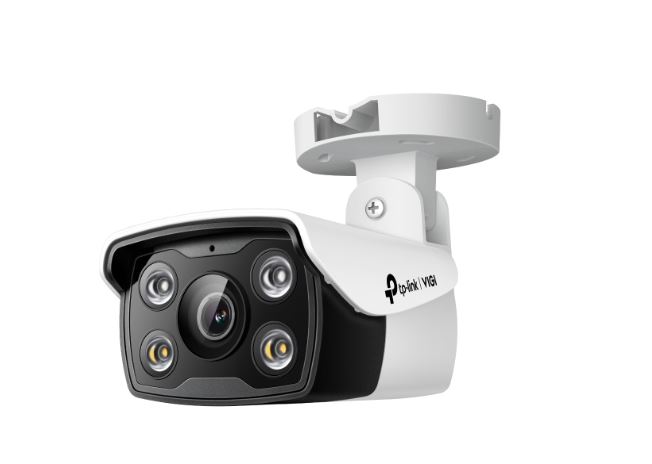

TP-Link VIGI 4MP Outdoor Full-Color Bullet Network Camera, IP security camera, Outdoor, Wired, Ceiling/Wall/Pole, Black, White, Bullet
TP-Link VIGI 4MP Outdoor Full-Color Bullet Network Camera. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: Black, White, Form factor: Bullet. Minimum illumination: 0.005 lx, Lens viewing angle, horizontal: 102°, Lens viewing angle, vertical: 55°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Detect distance: 64 m, Observe distance: 27 m, Recognize distance: 13 m
| Performance | |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Design | |
| Form factor | Bullet |
| Mounting type | Ceiling/Wall/Pole |
| Product colour | Black, White |
| LED indicators | Yes |
| Housing material | Plastic |
| International Protection (IP) code | IP66 |
| Camera | |
| Minimum illumination | 0.005 |
| Lens viewing angle, horizontal | 102 |
| Lens viewing angle, vertical | 55 |
| Lens viewing angle, diagonal | 122 |
| Tilt angle range | -90 - 90 |
| Pan range | -90 - 90 |
| Camera shutter speed | 1/3 - 1/10000 |
| Number of Privacy masking areas | 4 |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 3 |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Lens system | |
| Number of lenses | 1 |
| Detect distance | 64 |
| Observe distance | 27 |
| Recognize distance | 13 |
| Maximum aperture number | 1.6 |
| Identify distance | 6 |
| Fixed focal length | 2.8 |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 30 |
| LED type | IR |
| Number of illumination LEDs | 2 |
| Infra-red wavelength | 850 |
| Video | |
| Maximum resolution | 2560 x 1440 |
| Total megapixels | 4 |
| Video formats supported | H.264, H.264+, H.265, H.265+ |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440 |
| Frame rate | 30 |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation |
| Privacy masking | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | 256 Kbps - 4 Mbps |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| 3D positioning | Yes |
| Audio | |
| Built-in speaker(s) | Yes |
| Audio system | 2-way |
| Audio input channels | 1.0 |
| Audio output channels | 1.0 |
| Sample rate | 8 |
| Signal-to-Noise Ratio (SNR) | 52 |
| Built-in microphone | Yes |
| Bit rate range | 0 - 64 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Wi-Fi | No |
| Bluetooth | No |
| Live view | Yes |
| Number of simultaneous live view channels | 3 |
| Storage | |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Security | |
| Password protection | Yes |
| Video motion detection | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Automatic Network Replenishment (ANR) | Yes |
| Network access storage (NAS) | Yes |
| Management features | |
| Web browser | Yes |
| Reset button | Yes |
| Power | |
| Power source type | DC, PoE |
| Power consumption (typical) | 3.4 |
| Power consumption (max) | 7 |
| DC output voltage | 12 |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 60 |
| Storage temperature (T-T) | -40 - 60 |
| Operating relative humidity (H-H) | 0 - 95 |
| Storage relative humidity (H-H) | 0 - 95 |
| Weight & dimensions | |
| Width | 174 |
| Height | 70 |
| Length | 78 |
| Weight | 280 |
| Packaging data | |
| Package width | 128 |
| Package depth | 218 |
| Package height | 103 |
| Package weight | 424 |
| Package type | Box |
| Sustainability | |
| Sustainability compliance | Yes |
| Compliance certificates | BSMI, CE, KC |
| Packaging content | |
| Number of cameras | 1 |
| Mounting kit | Yes |
| Manual | Yes |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
