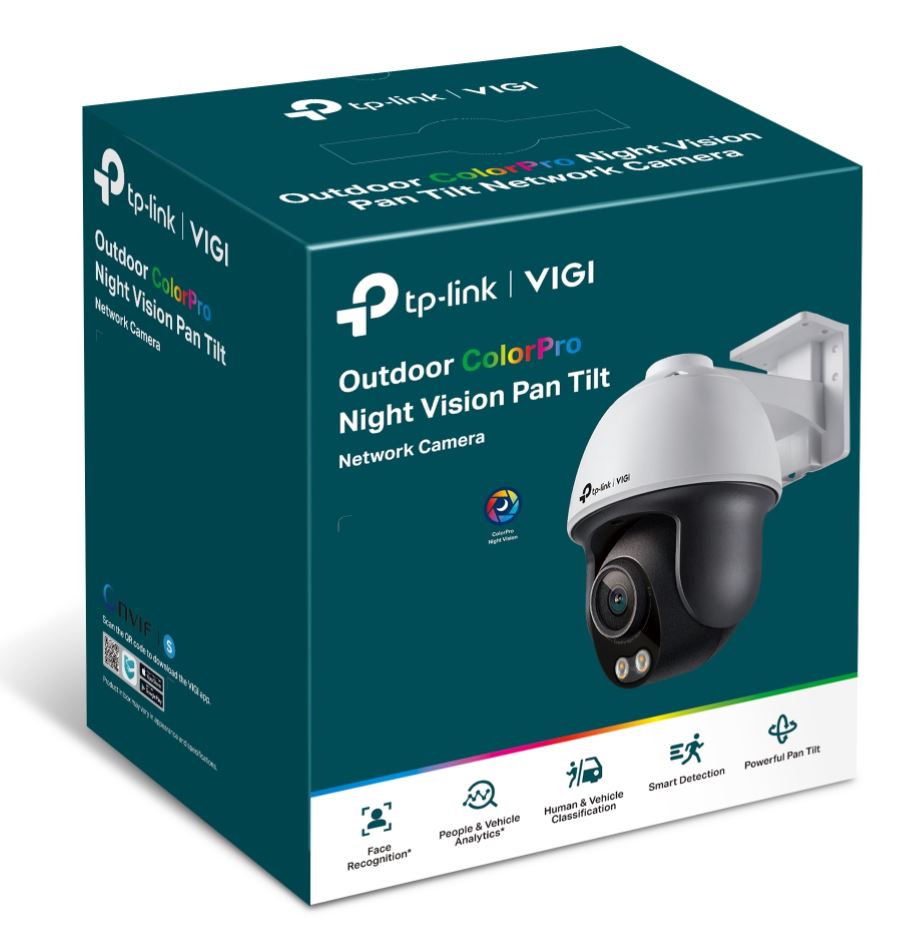

TP-Link VIGI C540S(4mm), IP security camera, Indoor & outdoor, Wired, Auto scan, Preset point, CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, Ceiling/wall
TP-Link VIGI C540S(4mm). Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Turret. Lens viewing angle, horizontal: 104°, Lens viewing angle, vertical: 55°, Lens viewing angle, diagonal: 127°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Detect distance: 63 m, Observe distance: 26 m, Recognize distance: 13 m
| Performance | |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| PTZ modes | Auto scan, Preset point |
| Preset points | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC |
| Design | |
| Form factor | Turret |
| Mounting type | Ceiling/wall |
| Product colour | Black, White |
| Housing material | Plastic |
| International Protection (IP) code | IP66 |
| Camera | |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 104 |
| Lens viewing angle, vertical | 55 |
| Lens viewing angle, diagonal | 127 |
| Tilt angle range | 0 - 105 |
| Tilt speed | 44 |
| Pan range | 0 - 348 |
| Pan speed | 44 |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 3 |
| Sensor type | CMOS |
| Lens system | |
| Number of lenses | 1 |
| Detect distance | 63 |
| Observe distance | 26 |
| Recognize distance | 13 |
| Lens diameter | 4 |
| Identify distance | 6 |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 30 |
| LED type | IR |
| Video | |
| Maximum resolution | 2688 x 1520 |
| Total megapixels | 4 |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Supported graphics resolutions | 320 x 240, 352 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520 |
| Frame rate | 30 |
| Video streaming | Yes |
| Image quality adjustment | Brightness, Contrast, DNR, Mirror, Saturation, Sharpness |
| Privacy masking | Yes |
| Bit rate | 256 Kbps - 6 Mbps |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Region of Interest (ROI) encoding | Yes |
| Audio | |
| Built-in speaker(s) | Yes |
| Audio system | 2-way |
| Audio input channels | 1.0 |
| Audio output channels | 1.0 |
| Built-in microphone | Yes |
| Bit rate range | 0 - 64 |
| Sample rates | 0 - 8 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Wi-Fi | No |
| Bluetooth | No |
| Live view | Yes |
| Number of simultaneous live view channels | 3 |
| Storage | |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Security | |
| Password protection | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Intelligent Video Surveillance (IVS) system features | Abandoned object, Human detection, Vehicle detection |
| Mirror | Yes |
| Human and vehicle targets classification | Yes |
| Digest authentication | Yes |
| Management features | |
| Web browser | Yes |
| Reset button | Yes |
| Behavior analysis | Intrusion detection, Line crossing detection, Region exiting detection |
| Smartphone/tablet remote support | Yes |
| Power | |
| Power source type | DC, PoE |
| Power consumption (max) | 13.13 |
| Power consumption (Power over Ethernet (PoE)) | 16.47 |
| DC output voltage | 12 |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 60 |
| Storage temperature (T-T) | -40 - 60 |
| Operating relative humidity (H-H) | 0 - 95 |
| Storage relative humidity (H-H) | 0 - 95 |
| Weight & dimensions | |
| Width | 120 |
| Depth | 172 |
| Height | 203 |
| Packaging content | |
| Number of cameras | 1 |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
