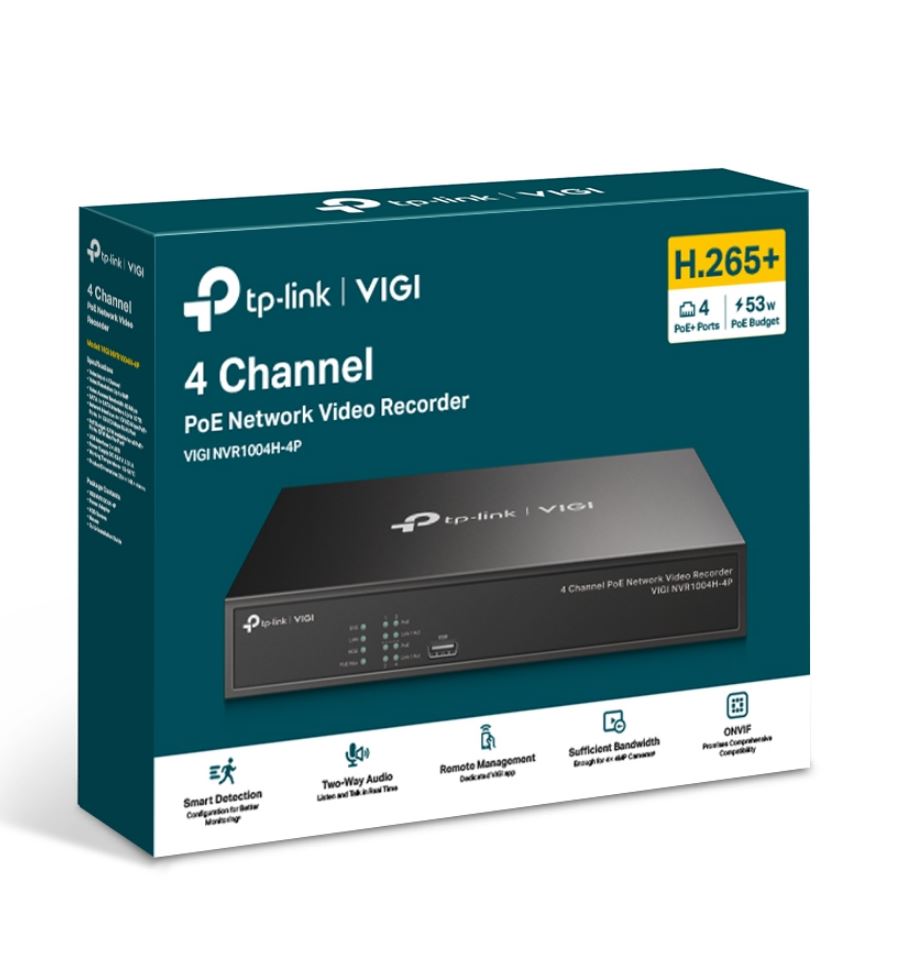

TP-Link VIGI 4 Channel PoE+ Network Video Recorder, 4 channels, 3840 x 2160 pixels, 720p, 1080p, 2160p, 3840x2160,1920x1080, 1680x1050, 1440x900, 1280x1024, 1024x768, 1280x720, 1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps, H.264, H.264+, H.265, H.265+
TP-Link VIGI 4 Channel PoE+ Network Video Recorder. Video input channels: 4 channels, Maximum resolution: 3840 x 2160 pixels, Video recording modes: 720p, 1080p, 2160p. Maximum storage capacity: 10 TB, HDD interface: SATA. Supported network protocols: TCP/IP, DHCP, DNS, NTP, UPnP. Product colour: Black. Power consumption (typical): 4.25 W, Output current: 1.31 A, Output voltage: 53.5 V
| Performance | |
|---|---|
| Video input channels | 4 |
| Alarm input channels | 4 |
| Alarm output channels | 1 |
| Video recording modes | 720p, 1080p, 2160p |
| Maximum resolution | 3840 x 2160 |
| Supported resolutions | 3840x2160,1920x1080, 1680x1050, 1440x900, 1280x1024, 1024x768, 1280x720 |
| Resolution at capture speed | 1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps |
| Video formats supported | H.264, H.264+, H.265, H.265+ |
| Input bandwidth | 80 |
| Output bandwidth | 60 |
| Wireless LAN features | |
| Wi-Fi | No |
| Hard drive | |
| HDD capacity | 0 |
| Maximum storage capacity | 10 |
| HDD interface | SATA |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI output | Yes |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 2 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| Supported network protocols | TCP/IP, DHCP, DNS, NTP, UPnP |
| Features | |
| LED indicators | Yes |
| Product colour | Black |
| Power | |
| Power consumption (typical) | 4.25 |
| Output current | 1.31 |
| Output voltage | 53.5 |
| Total Power over Ethernet (PoE) budget | 53 |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 55 |
| Weight & dimensions | |
| Width | 246.2 |
| Depth | 148.2 |
| Height | 45 |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
