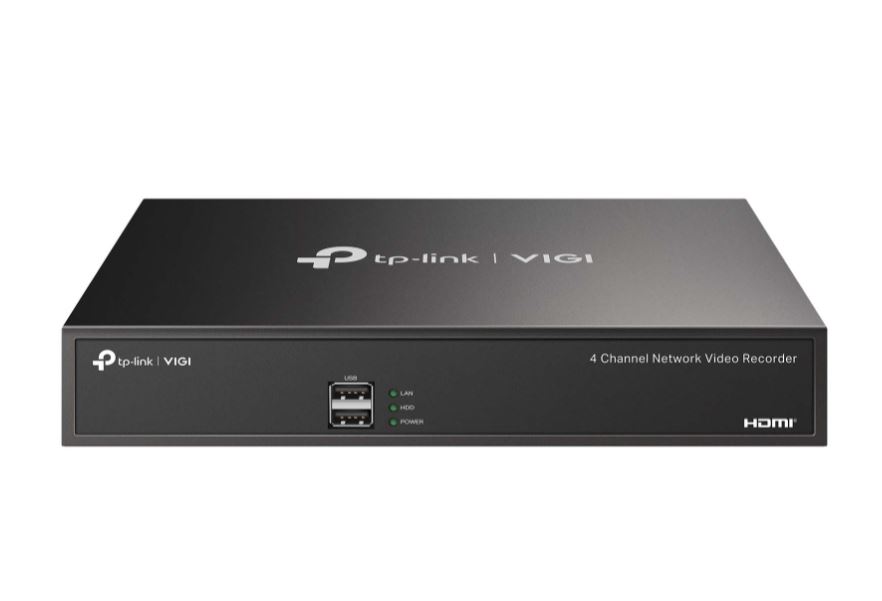

TP-Link VIGI NVR1004H, 4 channels, 3840 x 2160 pixels, 720p, 1080p, 2160p, 3840x2160,1920x1080, 1680x1050, 1440x900, 1280x1024, 1024x768, 1280x720, 1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps, G.711u, G.726
TP-Link VIGI NVR1004H. Video input channels: 4 channels, Maximum resolution: 3840 x 2160 pixels, Video recording modes: 720p, 1080p, 2160p. Maximum storage capacity: 10 TB, HDD interface: SATA. Supported network protocols: UPnP (Plug and Play), NTP (Network Timing). Product colour: Black. Power consumption (typical): 4.25 W
| Performance | |
|---|---|
| Video input channels | 4 |
| Video recording modes | 720p, 1080p, 2160p |
| Maximum resolution | 3840 x 2160 |
| Supported resolutions | 3840x2160,1920x1080, 1680x1050, 1440x900, 1280x1024, 1024x768, 1280x720 |
| Resolution at capture speed | 1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps |
| Video motion detection | Yes |
| Audio formats supported | G.711u, G.726 |
| Video formats supported | H.264, H.264+, H.265, H.265+ |
| Backup function | Yes |
| Maximum frame rate | 30 |
| Input bandwidth | 80 |
| Output bandwidth | 60 |
| Recording modes | Manual, Schedule |
| Wireless LAN features | |
| Wi-Fi | No |
| Hard drive | |
| HDD capacity | 0 |
| Maximum storage capacity | 10 |
| HDD interface | SATA |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power over Ethernet (PoE) ports quantity | 1 |
| HDMI output | Yes |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 2 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| DC-in jack | Yes |
| Supported network protocols | UPnP (Plug and Play), NTP (Network Timing) |
| Features | |
| LED indicators | Yes |
| Reset button | Yes |
| Product colour | Black |
| Power | |
| Power consumption (typical) | 4.25 |
| System requirements | |
| Mobile operating systems supported | Android, iOS |
| Browser supported | Chrome (57+), Firefox (52+), Edge (91+) |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 55 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage temperature (T-T) | -40 - 70 |
| Storage relative humidity (H-H) | 10 - 90 |
| Weight & dimensions | |
| Width | 246.2 |
| Depth | 148.2 |
| Height | 45 |
| Weight | 590 |
| Package weight | 950 |
| Packaging content | |
| AC adapter included | Yes |
| Quick installation guide | Yes |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
