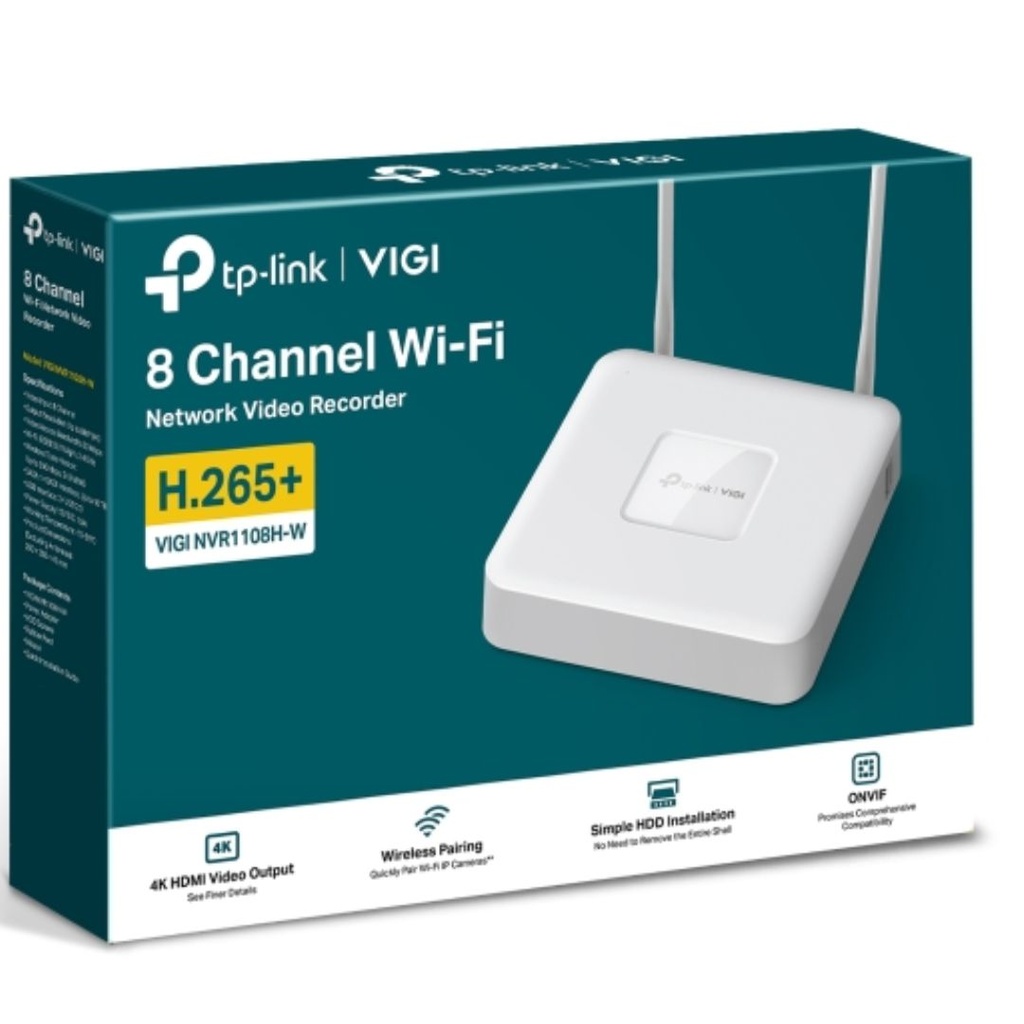

TP-Link VIGI NVR1108H-W, 8 channels, 3840 x 2160 pixels, 3840 ×2160, 1920 × 1080, 1680× 1050, 1440 × 900, 1280 × 1024, 1280 × 720, 80 Mbit/s, 60 Mbit/s, Manual, Schedule
TP-Link VIGI NVR1108H-W. Video input channels: 8 channels, Maximum resolution: 3840 x 2160 pixels, Supported resolutions: 3840 ×2160, 1920 × 1080, 1680× 1050, 1440 × 900, 1280 × 1024, 1280 × 720. Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi data rate (max): 300 Mbit/s, Wi-Fi band: Single-band (2.4 GHz). Maximum storage capacity: 10 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100 Mbit/s, Supported network protocols: NTP. Product colour: White, Certification: CE, NCC, JRF, RCM, KC, BSMI, VCCI, HDMI
| Performance | |
|---|---|
| Video input channels | 8 |
| Maximum resolution | 3840 x 2160 |
| Supported resolutions | 3840 ×2160, 1920 × 1080, 1680× 1050, 1440 × 900, 1280 × 1024, 1280 × 720 |
| Video motion detection | Yes |
| Video loss detection | Yes |
| Multi-screen | Yes |
| Backup function | Yes |
| Input bandwidth | 80 |
| Output bandwidth | 60 |
| Recording modes | Manual, Schedule |
| Wireless LAN features | |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi data rate (max) | 300 |
| Wi-Fi band | Single-band (2.4 GHz) |
| Security algorithms | WPA-PSK, WPA2-PSK |
| Hard drive | |
| HDD capacity | 0 |
| Maximum storage capacity | 10 |
| HDD interface | SATA |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN data rates | 10,100 |
| Ethernet WAN | Yes |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 2 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| DC-in jack | Yes |
| Supported network protocols | NTP |
| Features | |
| LED indicators | Yes |
| Reset button | Yes |
| Product colour | White |
| Certification | CE, NCC, JRF, RCM, KC, BSMI, VCCI, HDMI |
| Power | |
| Power consumption (max) | 16.3 |
| Power consumption (typical) | 5.7 |
| System requirements | |
| Mobile operating systems supported | Android, iOS |
| Browser supported | Chrome (57+), Firefox (52+), Edge (91+) |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 55 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage temperature (T-T) | -40 - 70 |
| Storage relative humidity (H-H) | 10 - 90 |
| Weight & dimensions | |
| Width | 200.3 |
| Depth | 200.3 |
| Height | 43 |
| Weight | 500 |
| Package weight | 1 |
Specifications
| Brand | TP-Link |
| Manufacturer | TP-Link |
